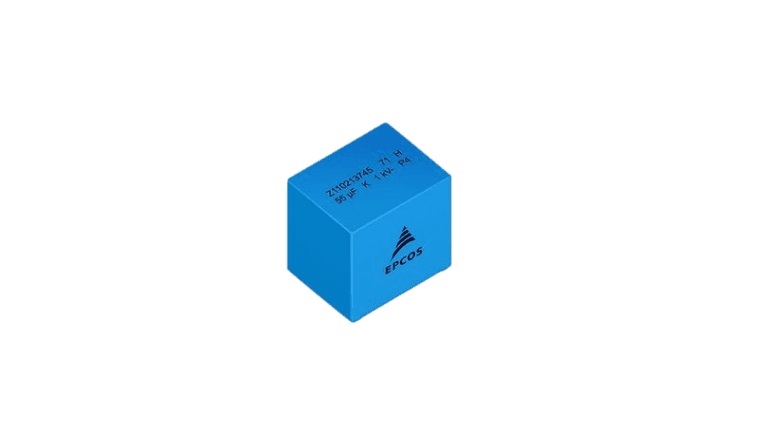

B3271*H* series film capacitors for DC link applications
TDK corporation presents the B3271*H* series, new EPCOS film capacitors for DC link applications that feature high energy and power density. The capacitors are rated for voltages from 500V DC to 1600V DC, offer capacitance values from 0.47µF to 170µF and are suitable for a maximum operating temperature of up to 105°C. At a rated voltage and operating temperature of 70°C, the typical life of the rugged, self-healing and RoHS-compliant capacitors is 95,000hours.
The capacitors are available in lead spacings of 27.5mm, 37.5mm and 52.5mm, with both 2-pole and 4-pole versions. This results in more than 90 types, offering high design flexibility. For the selection of the suitable DC link capacitor TDK offers the tool CLARA.
The low self-inductances of only from 11.5nH to 23nH combined with the high ripple current capability make the new capacitors particularly well suited for SiC-based inverters operating at high switching frequencies. The series is qualified to IEC 61071, AEC-Q200 as well as UL 810 and enables use in typical industrial applications such as frequency converters, photovoltaic inverters, EV fast chargers and automotive applications such as onboard chargers and auxiliary and power inverters.
Features
- DC voltage ratings: 500V to 1600V
- Capacitance range: 0.47µF to 170µF
- THB 60°C/95% RH/VR 1000h
- Maximum operating temperature: +105°C
- Lead spacing options: 27.5mm, 37.5mm, and 52.5mm
- Special feature: high Irms capability and still small dimensions
- AEC-Q200D-compliant
- UL 810 construction
Applications
- Frequency converter
- Photovoltaic inverter
- EV fast chargers
- Onboard chargers
- Auxiliary and power inverters
