16x16 Direct-RF sampling module

XRF16 Gen2 SOM Board
XRF16 Gen2 SOM Board

XRF16 Gen2 SOM

The Avnet XRF16™ RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power, and real-time processing. The XRF16 features the AMD Xilinx Zynq® UltraScale+™ RFSoC Gen2, with 16 RF-ADC, 16 RF-DAC channels, and 5GHz RF bandwidth.

Combine the production-ready XRF16 module with the XRF16 Carrier Card and Avalon™ software suite to jumpstart proof-of-concept and application development. Then deploy your system with the same XRF16 module used for proof-of-concept. Example code and tutorials demonstrate AMD Xilinx RFSoC multitile sync (multi-converter sync) and multi-board synchronized analog capture.

GEN2 NOT RECOMMENDED FOR NEW DESIGNS

SEE GEN3 FOR NEW DESIGNS

Forum Support on element14

Features

AMD Xilinx Zynq UltraScale+ Gen2 ZU39DR RFSoC

  • 16x ADCs, 12-bit up to 2.220 GSPS
  • 16x DACs, 14-bit up to 6.554 GSPS
  • Quad-core Arm® Cortex®-A53 processing subsystem
  • 1 GbE, PCIe Gen1/2, SATA, USB2/3
  • UltraScale+ programmable logic

High-Speed Data Transfer

  • 16x ultra-fast AMD Xilinx GTY serial transceivers
  • Quad Mesh™ firmware combines AMD Xilinx Aurora protocol with GTY transceivers to stream data with four peers, facilitating tiling in high performance real-time systems

Clocks & Synchronization

  • Ultra-low jitter programmable sampling clocks
  • External or onboard 10 MHz reference clock
  • Phase coherent synchronous sampling across all converters & multiple boards

Memory

  • 4GB DDR4 @ Programmable Logic
  • 4GB DDR4 @ Processor Subsystem
  • 32GB eMMC persistent storage
  • 128MB QSPI boot storage

System

  • 4” x 5” footprint
  • 5.5V to 16V input
  • Temperature monitor
  • Industrial temperature rated
  • Air and conduction cooling options



Target applications

  • Phased Array Radar
  • 5G Massive MIMO
  • Hybrid Beamforming
  • Signal Detection & Jamming
  • Medical Imaging
  • Multi-Channel RF Instrumentation

Request access to technical documents






AMD™ Zynq™ + RFSoC-based plug-on SOMs enable distributed, very large channel count RF for TRADAR and SDR



XRF16 Gen2 SOM Board

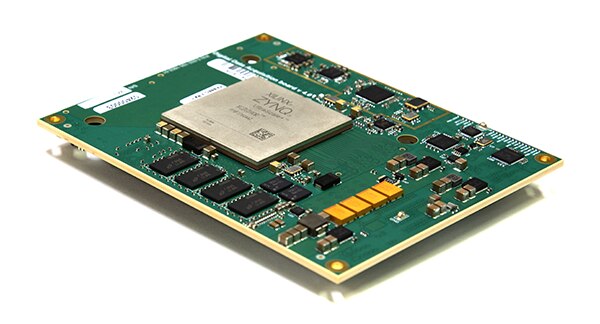

SOM Top

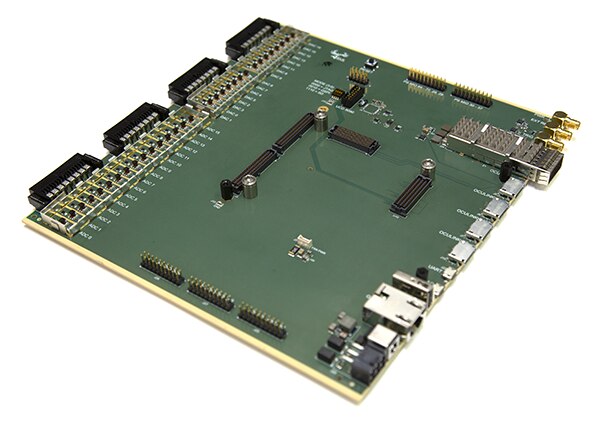

Carrier Card

XRF16 Gen2 SOM Board
Specification Description
MEMORY
  • DDR4
  • 2 Banks of 64-bit
  • 2GB DDR4 DRAM (4 GB total)
VIDEO DISPLAY

AMD™️ Zynq™️ + RFSoC-based plug-on SOMs enable distributed, very large channel count RF for TRADAR and SDR

CONFIGURATION MEMORY
  • QSPI
  • eMMC
ETHERNET
  • 10/100/1000 Gb
GPIO
  • 72 GPIO
  • 16x 28Gbps serial transceivers
INTERFACE STANDARDS
  • PCIe Gen3, Aurora, 100GbE, USB3
PCIE
  • Yes
USB
  • Yes

error....

Frequently Asked Questions

Do Avnet's products come with a warranty?   ... more

First        1        Last          Results Per Page: 10  20  30  all


XRF16 Gen2 SOM Board
XRF16 Gen2 SOM Board

Download Product Brief

What's Included
  • XRF16 System-on-Module
  • Avalon software

XRF16 Gen2 SOM Board
