Renesas AnalogPAK™

GreenPAK programmable mixed signal matrix with rich-analog features

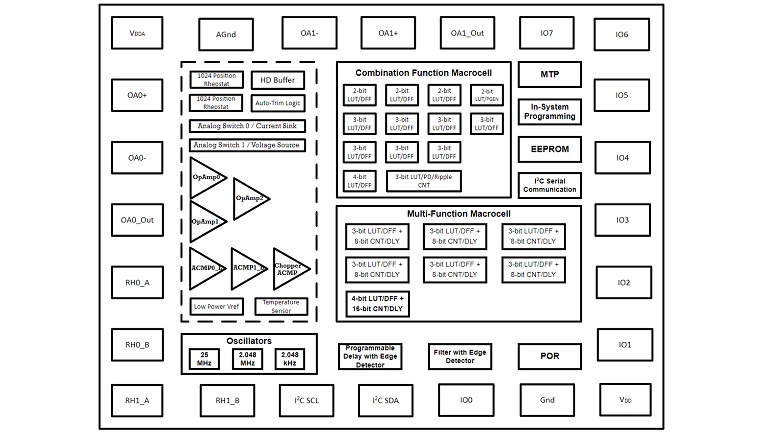

The AnalogPAK sub-family features GreenPAK ICs that provide some specific analog capabilities, such as operational amplifiers, 10-bit rheostats, analog switches, voltage references, analog comparators, and more. These macrocells are integrated into a single IC to combine both analog and digital components for higher efficiency. This sub-family also introduces advanced data processing and analog blocks like high-resolution ADCs, programmable gain amplifiers, RAM, MathCore, and DACs. These features enable versatile data conversion solutions, both for use with MCUs and as standalone applications.

Applications

Analog front-ends, Instr. amplifier with offset and gain trim
Shunt current sensors, capacitive sensor button, data acquisition system
Tunable amplifiers / filters, thermal protection with trimmable threshold, low-power programmable
Button replacement using FSR sensor, capacitive sensor button
Thermocouple / RTD interface, MPPT tracker
Protection (V, I, P, temp, etc.), current / power monitors
Address RGB LEDs control, Industrial communication (HART modem)

Available tools

This sub-family includes the following part numbers: SLG47001, SLG47003, SLG47004, and SLG47011

Recommended hardware tool sets are:
- GreenPAK Lite Development Board (SLG4DVKLITE) or GreenPAK Advanced Development Board (SLG4DVKADV) + SLG47001V/SLG47003V/SLG47004V/SLG47011V -SKT
- GreenPAK DIP Development Board + SLG47001V/SLG47003V/SLG47004V/SLG47011V -DIP
- GreenPAK Serial Debugger Board (GSD)
