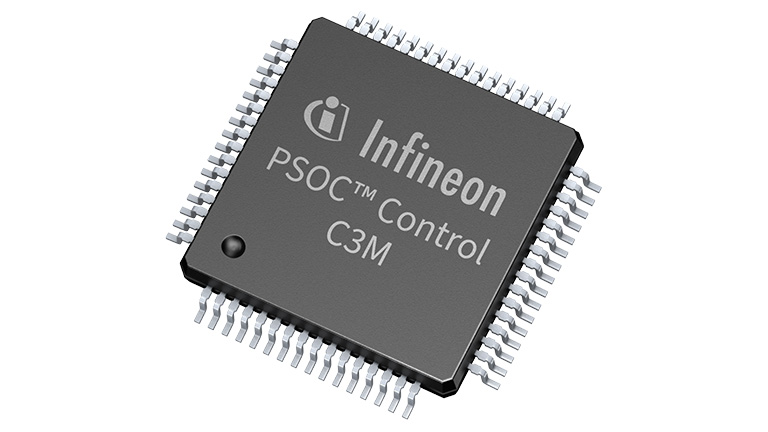

Infineon PSOC™ Control C3

The next generation of Industrial Microcontrollers

PSOC™ Control family of microcontrollers from Infineon are the next generation of MCUs developed specifically for motor control and power conversion applications. Using real-time control with Arm^® Cortex^®- M33 this high-performance microcontroller family is targeted at HVAC, home appliances, power tools, industrial automation, server and telecom switch mode power supplies (SMPS), solar inverter, and light electric vehicles. Advance features of the PSOC™ Control microcontroller include high-performance ADC and integrated CORDIC accelerator. With true synchronous “idle” sampling of up to 16 analog signals from the single core ADC, up to 25% faster results is possible without any sampling jitter. The CORDIC accelerator can offload the MCU and increase computational power for real-time critical tasks such as field-oriented motor control algorithms. The unique combination of high-performance and low-power consumption enables designers to innovate, solve complex design problems and get their products to market faster than ever before.

Key features

32-bit MCU subsystems
Up to 180 MHz Arm^® Cortex^® -M33 with DSP and FPU
Up to 256 kB read-while-write flash with ECC
64 kB SRAM with ECC
16 kB I-cache
6 power modes including deep sleep and hibernate
High-performance analog
12-bit, up to 12-MSPS SAR ADC
18 analog channels
5 comparators with built-in 10-bit DAC and slope generator
Real-time control peripherals
16 x 16-bit and 4 x 32-bit TCPWMs
4-channel HRPWM (C3 main)
CORDIC math coprocessor
Up to PSA L2 device security
NIST P256 and TRNG
Cryptography
Secure boot
Secure firmware update
Processing isolation
Wide bandgap ready for higher system efficency
Development platform: ModusToolbox™ Software and Motor Suite

Applications

Power / gardening tools
Lawn mower robots. home robots
Residential aircon ODU, commercial aircons
Large and medium home appliance drives
PV inverters
LEV
EV charging
General purpose drives, servo drives
LED lighting
Telecom, server and workstation PSUs
