Renesas RA0E1

The RA0E1 group is the product which aims to Low-end Arm® MCU market. This product implements the Arm® Cortex®-M23 core with low power and peripherals which are optimized for BOM cost reduction and simple design for the low-end MCU market. The RA0E1 group supports up to 64-KB code flash, 12-KB SRAM memory and a wide operating voltage range of 1.6V to 5.5V.

The RA0E1 package lineup starts with 16-pin up to 32-pin and Flash memory size starting from 32KB up to 64KB, including some of small package option line QFN (3mm x 3mm). Also, provides pin and peripheral compatibility with RA2E1, the most popular Arm MCU in the Renesas portfolio. This wide range of scalability manifests itself in optimum flexibility for the MCU SW and HW designers when needing extra I/O lines or additional peripheral functions. Designers only need to migrate to the next pin count size to gain extra I/O lines and functionality.

RA0E1 is the first MCU group in the brand new RA0 series and stands out for its lowest power consumption, optimized peripherals, and cost-effectiveness, making it well-suited for cost-sensitive applications.

Key features

• Low power process: Active current 2.7mA and Software standby current 0.2uA
• Lots of communication : UART x4, Simplified SPI x3, IIC x1 Simplified IIC x3
• Internal High-speed OCO : Fast wake up(0.9us), 1% precision , -40°C to 105 °C supported
• Operating Voltage: 1.6V to 5.5V
• Operating temperature range: Ta = -40°C to 105°C
• TRNG, Unique ID and AES library to support Security requirements
• HW Safety features for IEC/UL60730 certification

Benefits

• Reduction of system current consumption
• Can connect to many modules thru abundant serial functions
• BOM cost reduction by external clock, 5V level shifter / regulator not needed
• Support many kinds of application by Wide voltage/temp range, Security features and Safety features.

Applications

• Consumer Electronics
  • Smart pen
  • Personal Safety Tracker
• Small Appliances
  • Smart Robot Vacuum Cleaner
• Industrial Automation
  • Air Purifier Sensor Module
  • IO-Link Slave Sensor
• Building Automation
  • Bathroom Odor Detector
  • Body Temperature Measurement in Access Control Systems

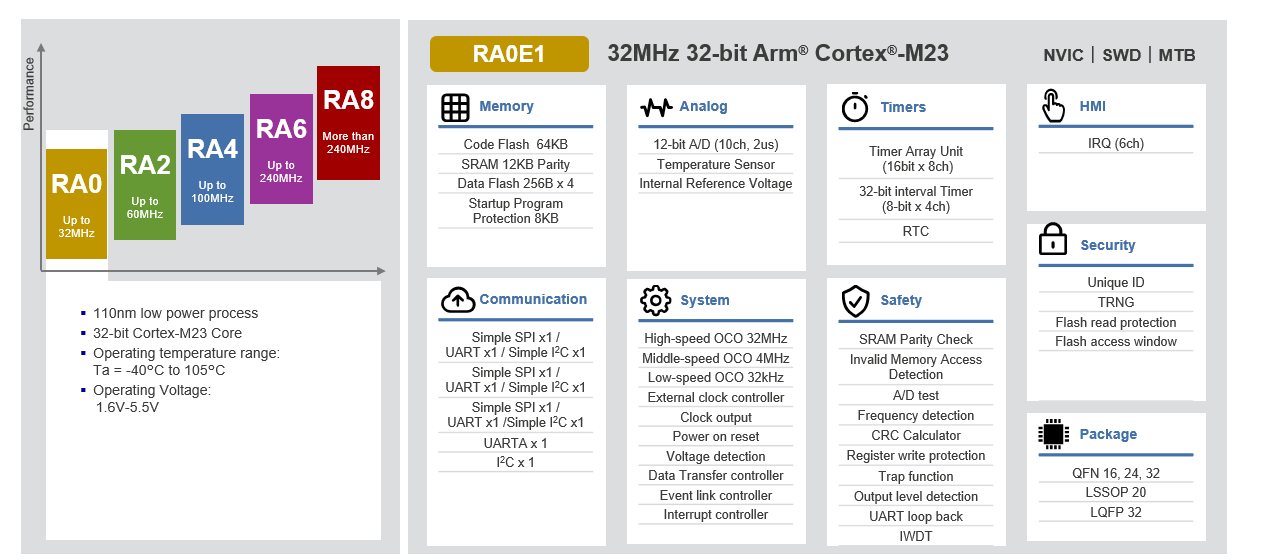

Block diagram

Click to enlarge
