Nexperia Residential Heat Pump

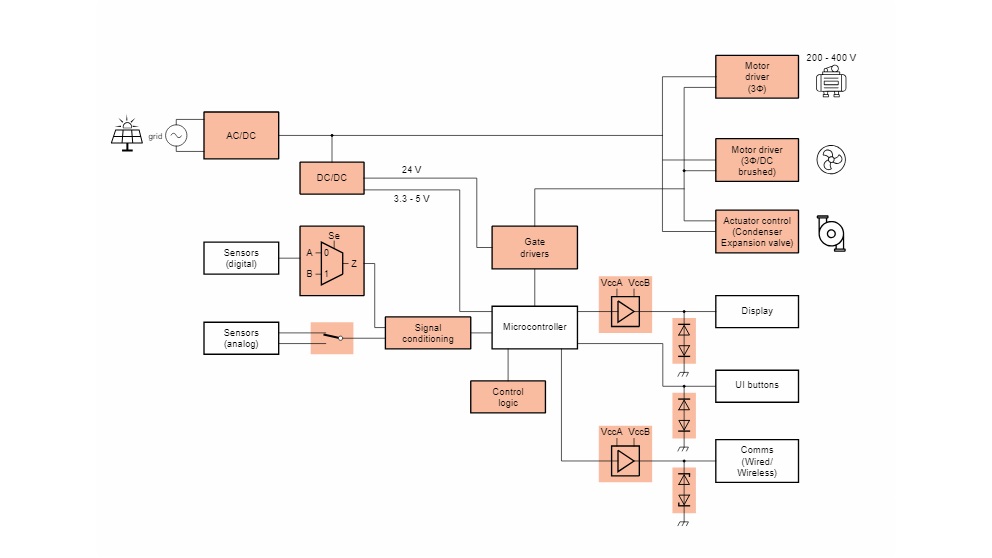

As demand rises for ever more efficient heating and cooling of homes, this has seen a significant push towards efficient residential heat pumps. As a direct replacement for gas condensing boilers and air conditioning units, residential heat pumps can provide year-round comfort control by supplying heat in the winter and cooling in the summer. For newer buildings and specifically for net zero carbon buildings less than 150 m2 then typical heating power ratings are below 6 kW. Regardless of whether they are air-to-air or air-to-water systems, efficiency and carbon footprint can be further improved when powered by a photovoltaic (PV) installation.

Design considerations

• Heat pumps can either use a single unit design or split (Outdoor / Indoor) design and range from 2 kW to 20 kW, with typical modern insulated buildings requiring less than 6 kW.
• Depending on heating level, various voltage and power requirements are needed for the compressor, circulator pump and fan
• Drive is towards more efficient PFC topologies, with new Vienna rectifier / totem pole topologies preferred
• IGBTs and new wide-bandgap technologies provide the efficiencies required

Products - AC/DC (PFC) / DC/DC

• GaN FET: 650 V
• Discrete IGBTs: 650 V, TO-247-3L
• MOSFETs: 40-100 V, RDSon < 10 mΩ, LFPAK / CCPAK
• SiC diode: 650 V, DPAK / D2PAK / TO-247
• Recovery rectifier: 200 / 650 V, CFP

Products - Motor drive

• Compressor: MOSFETs, 80-100 V, RDSon < 3.5 mΩ, LFPAK / CCPAK
• Compressor: 650 V GaN FET, RDSon 14-60 mΩ
• Discrete IGBTs: 650 V, TO-247-3L
• Fan (3-phase / DC brushed): MOSFET, 40-100 V, RDSon 2-10mΩ, LFPAK33 / LFPAK56(E)
• Pump control: MOSFET, P-channel, up to 60 V, MLPAK33 / LFPAK56
• Gate drivers: 4 A, half-bridge, for low voltage MOSFETs
• Freewheeling diodes: SiGe diodes, 120-200 V, CFP3 / CFP5

Products - HMI / MMI

• Backlighting and signalling: LED drivers, NCR family​
• ESD protection: 3.3-5 V, low frequency
• Voltage translators (level-shifters): LVC family
• Control logic: LVC family
• Analog switches / Multiplexers: HC(T) family

Products - General

• Recovery rectifier: 200 V, CFP
• Gate Driver: Single bipolar transistors ≤ 100 V, IC(max) < 60 mA, SOT23/323
• Gate Driver (MOSFET ≤60V): HC(T) buffer / drivers / Schmitt triggers
