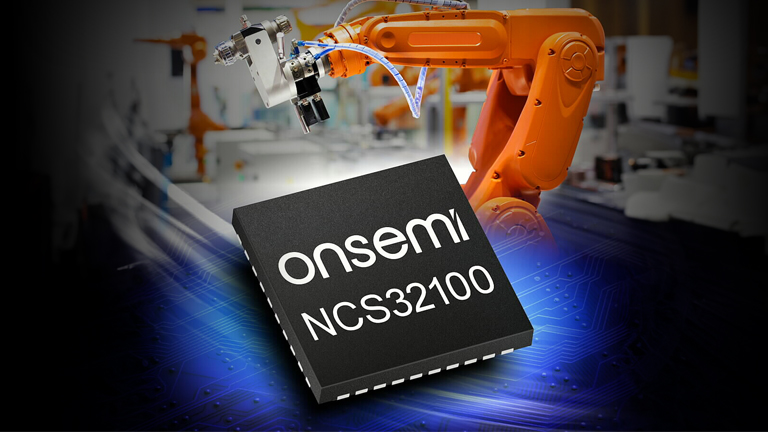

Inductive Sensing NCS32100
The NCS32100 offers a full featured controller and sensor interface for high resolution high accuracy angular sensing when paired with a printed circuit board sensor. The NCS32100 has flexible configuration capabilities allowing for connection to a variety of inductive sensor patterns and offers a variety of digital output formats. Inductive sensing techniques have unique advantages over traditional position sensor solutions including but not limited to temperature insensitivity, mechanical simplification, and insensitivity to contaminants.
Features
- Supports 2.5MHz UART interface for connection to a half duplex RS-485 driver
- Maximum speed at full accuracy: 6000 rpm
- Maximum functional rotor speed: 45000 rpm
- Supply Voltage Range: 2.7V - 5.5V
- Supports Battery Backup for Multi-turn count tracking
- Sensor interface is highly configurable (up to 8 channels)
- Reports internal device temperature with programmable over temperature thresholding
- Reports backup battery voltage with programmable low battery thresholding
- 3us Response time to external master data acquisition command
- Full operation current: 80mA
- Supports self-calibration feature
- 20-bit Position Resolution
- 24-bit Multiturn Resolution
- Supports latency cancellation feature
Applications
- Industrial Automation
- Robitics / Cobots
- Angular position and velocity sensing
- Servo control
